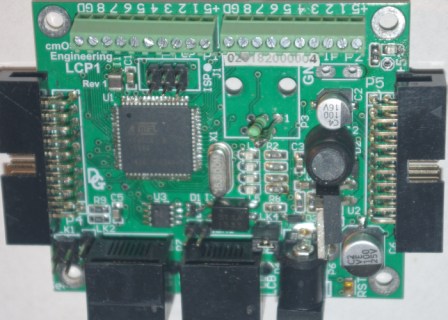

The cmOS Engineering LCP1 is an NMRA/LCC/OpenLCB compliant node implementing a CAN segment
32 Producer/Consumer layout interface.
Additionally, a further 20 producers/consumers are included in the form of
logic elements. Interface Elements: Are divided into 2 groups (Port A) and (Port B) of 8 elements. Each element can be individually configured as an input or output, active high or active low, given a meaningful name, and activation/deactivation event IDs assigned. Additionally, two ports of 8 elements each are provided which provide additional layout interface capability. These two ports interface directly with cmOS Engineering Layout Interface Cards (LIC) details of these are available here. Logic Elements: Each logic element can be configured as a Timer (0.5,1,2,4, or 8 seconds), or logic function (and/or/xor/nand/nor) Preliminary user manual here. |
| Mechanical | ||||
|---|---|---|---|---|
| Dimensions | Mounting | Weight | ||
| Width: 70mm Height: 60mm | 4 x 3.5mm holes | 39g - 1.35oz | ||
| Environmental | ||||
| Operating | Storage | |||
| -40°C to 85°C; Humidity <90% | -60°C to 150°C; Humidity <90% | |||
| Electrical | ||||
| Absolute Maxima | Supply Voltage 13.8 Volts |
Voltage on any input/output pin: Max 5.2V Min -0.2V DC current per input/output pin 35mA - Total 300mA for all pins |
||
| Supply Voltage | Min 7.0V - Max 12.8V; Reverse voltage protected | |||
| Supply Current - All outputs off | 35mA | |||
| Connectors |
1 x 7mm Input Power, centre pin positive35mA 2x RJ45 Ethernet Looping Power and CAN ground Jumper Option 2 x 10 Screw Terminal for input/output connection with +5V and Ground 2 x 20 Pin Enhancement/Expansion (cmOS Engineering LIC) ports |
|||
| CAN Termination | Passive bypassed split resistors (Jumper Option) | |||
| Standards | ||||
| OPENLCB | At least minimum requirements compliant | |||
| NMRA/LCC | At least minimum requirements S9.7 compliant | |||
