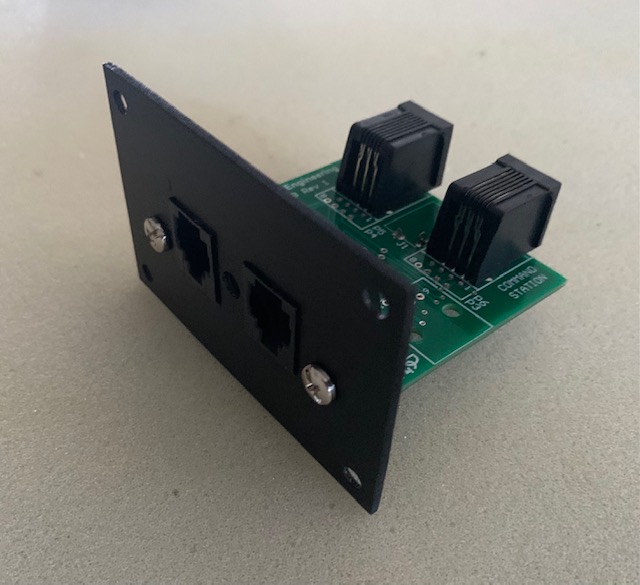

The cmOS Engineering CCB is an connection point for DCC Control Cabs which use RS485 communication.
It comes in several different models which faciliate either connecting to the DCC Command Station by
modular flat telephone cable or CAT 5/6 cable.
It also allows the insertion of additional DC power required by the Cabs as the distance from the Command Station increases. The standard model (CCB-0) utilises modular flat telephone cable (using RJ12 connectors) which is the standard cable used by the original equipment manufacturers. The CAT 5/6 model (CCB-1) utilises CAT 5 or CAT 6 cable which provides greater electrical noise immunity and also allows longer distances bewteen the placement of additional Cab power supplies CCB-0 Manual here CCB-1 Manual here |
| Mechanical | ||||
|---|---|---|---|---|
| Dimensions | Mounting | Weight | ||
| Width: 76mm Height: 51mm | 4 x 5.0mm holes | 30g - 1.0oz | ||
| Environmental | ||||
| Operating | Storage | |||
| -40°C to 85°C; Humidity <90% | -60°C to 150°C; Humidity <90% | |||
| Electrical | ||||
| Absolute Maxima | Supply Voltage 15.0 Volts | DC current depends on current required by connected Cabs . | ||
| Connectors | 1 x 3.5mm phone jack - tip positive | |||
| CCB-0: | 4 x RJ12 | |||
| CCB-1: | 3 x RJ12, 2 x RJ45 | |||
